Cloth Fabric Inserted EPDM Rubber Sheet

Cloth Fabric Inserted EPDM Rubber Sheet

Product number:KXT IE400

Quick Overview: Kaxite manufactures cloth inserted EPDM rubber sheet. For every 1/16” of EPDM, a one ply layer of fabric such as nylon, lightweight nylon or fiberglass

Send Inquiry

PDF DownLoad

Product Description

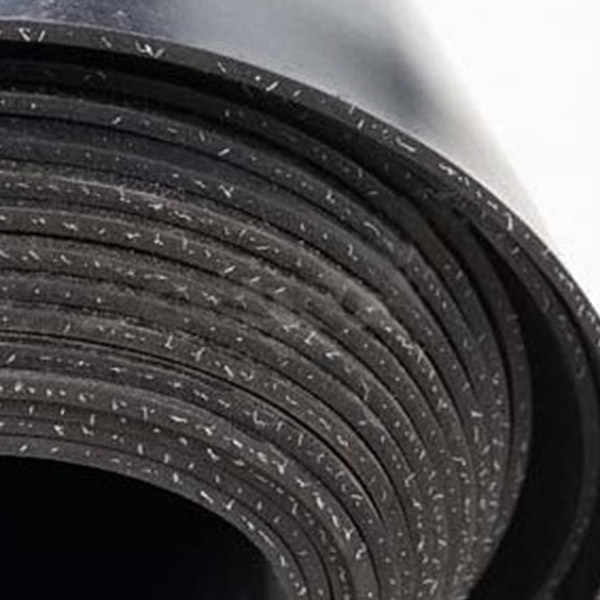

Cloth Inserted EPDM Rubber Sheet

Kaxite manufactures cloth inserted EPDM rubber sheet. For every 1/16” of EPDM, a one ply layer of fabric such as nylon, lightweight nylon or fiberglass. Cloth-inserted rubber adds enhanced stability and reduces gasket creep. It is perfect for belts and gaskets that are exposed to moisture and harsh weather conditions.



The composition of cloth inserted EPDM rubber sheet is ideal for mechanical fastening gaskets. Cloth inserted EPDM offers the same properties as conventional EPDM rubber, such as weather resistance, with the enhanced stability of cloth inserted products.

Cloth inserted EPDM rubber sheet adds durability and enhanced strength under hot or cold loads and is commonly used for gasketing applications. Additional uses for cloth inserted EPDM rubber include conveyor belts and high strength diaphragms



We also offers fiberglass inserted EPDM that is known for its durability in applications requiring gasket stability. The fiberglass reduces gasket creep in applications where heavy pipe, joint or structure loading occurPDM rubber material sheet is a great weather resistant material.

Inserted cloth Fabric: Nylon, glassfiber, cotton or other fabrics



Advantages

Inserted cloth fabric adds durability and enhance strength of EPDM

• Will not deteriorate when submerged in fresh or seawater

• Good mechanical, and wear resistance properties

Excellent chemical resistance to acids and alkalis

• Good high and low temperature resistance

Ideal for long term outdoor applications

Very durable and long time usage

Good low electrical conductivity

• Good Tensile Strength

Excellent color stability



Application

• Harsh extremes as marine and underwater applications

• UV, ozone and general weathering applications

• High temperature water environments

• Pipe gasket seals and weather strips

• Outdoor and automotive applications

• Good for use with drinking water

high strength diaphragm

• Conveyor belts



EPDM rubber Properties

Item

EPDM

Test Method

Inserted

Nylon/glassfiber


Specific gravity

1.5g/cm3

ASTM D297

Hardness

70 Shore A

ASTM D2240

Tensile strength

10 MPa (min)

ASTM D412

Elongation at break

350% (min)

ASTM D412

Width

1m, 1.2m or 1.5m


Tear strength

40 N/mm

ASTM D 624

Low temperature resistance

-50°C

ASTM D1329

Temperature range

-30°C to + 120°C

ASTM D2000



Kinds of Rubber Properties

Common name

Neoprene

EPDM

Nitrile

Silicone

Viton

Kalrez

Chemical Compatibility

Lubricating and Fuel Oils

X

X

Hydraulic Oils

X

Fireproof Hydraulic Fluids


X

Vegetable Oils, Animal Fats

Gasoline (high octane) X X X

Kerosene X X

Aromatic Hydrocarbons X X X X

Aliphatic Hydrocarbons X X

Alcohols

Ketones X X X X
Halogenated Solvents X X X X
Water (>80°C)

Concentrated Acids X X X X

Diluted Acids

X X

Alkalis


X

Properties

Max. Continuous temp °C 105 130 121 204 250 316
Low Temperature °C –50 –54 –25 –85 to –125 –8 to -30 –8
Tensile Strength, MPa 25 17 27 10 20 15
Hardness Shore A 30–95 40–90 40–95 30–90 70–90 65-95

Key: = Excellent , = Good, = Fair, X = Not Recommended
