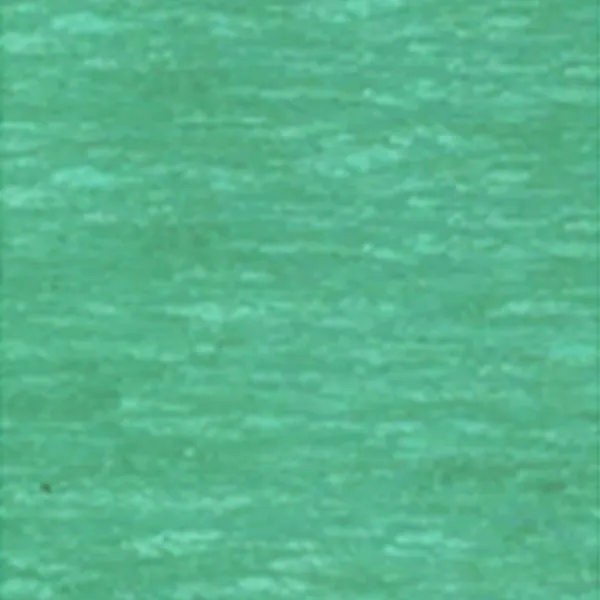

Oil-Resistance Asbestos Rubber Sheets KNY600

Oil-Resistance Asbestos Rubber Sheets KNY600

Product number:KNY600

Quick Overview: Made of good long asbestos Fibre, oil-resistance synthetic rubber, heat-resisting packing material compound heating and compression molding it and used as sealing material in the joints of oil pipeline and sealing gasket used on automobiles motorcvcles, agricultural machines, engineering machinery engines

Send Inquiry

PDF DownLoad

Product Description

KNY150 Oil-Resistance Asbestos Rubber Sheets KNY250 Oil-Resistance Asbestos Rubber Sheets
KNY300 Oil-Resistance Asbestos Rubber Sheets KNY400 Oil-Resistance Asbestos Rubber Sheets
KNY510 Oil-Resistance Asbestos Rubber Sheets KNY600 Oil-Resistance Asbestos Rubber Sheets
Oil-Resistance Asbestos Rubber Sheets With Steel Wire Inserted
Material:
Made of good long asbestos Fibre, oil-resistance synthetic rubber, heat-resisting packing material compound heating and compression molding it.
Uses:
Mainly used as high-temperature pressure sealing gasket for gasoline, mineral oil, fuel, hot chemical solvent-oil and alkali medium.
Working pressure : 6Mpa , Max working temperature: 580
Sizes: 1500 x 1360 x (0.5 - 6.0)mm, 1270 x 1270 x (0.5 - 6.0)mm,1500 x 1500 x (0.5 - 6.0)mm
Packing: in wooden pallet of about 1000 kgs, 2000kgs net each.
Oil-resisting Asbestos Rubber Sheets Physical Property
GB/T539-1995
Oil-resis-
tance
Item KNY400 KNY250 KNY150 KNY300 Aviation
Oil-resisting and Metal Strengthening
(Enterprise Standard)
Oil-resisting and Metal Strengthening (Enterprise Standard)
With the temperature
of 1502,
dipped in No.20 aviation luricatint
oil for 5h,then taken out and laid for 5min.
Horizontal Strain MPa 26.0 9.0 8.0 10.8 13 15
Oil Absorptivily 9 23 23 23 20 20
Thickness-increasing% 15 20
15 15 15
Change of Outlook No Bubble
With the temperature
of 15-30,
dipped in NO.75 aviation gasoline
for 5h,then taken out
and laid
for 5min.
Horizontal Strain MPa 14.7 7.0 6.0 7.9 8.5 10
Oil Absorptivity 15 22 22 22 18 18
Thickness-increasing% 20 25
25 23 23
Softness No Crack

Softness No Crack

Density
g/cm2
1.6-2.0
Compressibility % 125
Elasticity 50 45 35 45 45 45
Oil-sealing Temperature:
15-30 Medium:
NO.75
aviation
gasoline or
NO.3 jet fuel.
Pressure:
12MPa
Pressure:
10MPa
Pressure:
8MPa
Pressure:
15MPa
Pressure:
15MPa
Pressure:
15MPa
Fully Sealed
Corrosiviness Hard aluminium plate,low carbon steel No Corrosion
Horizontal Strain MPa
11.0 9.0 12.7

Stress-relaxation % 45
