V-Shape Stainless Steel Metallic Strip Tape for Spiral Wound Gasket
Model:GR104
V-Shape Stainless Steel Metallic Strip Tape for Spiral Wound Gasket in Flat, V and W profiles. Thickness 0.15–0.20 mm, width 2.5–100 mm, V height 4.8–5.3 mm / 3.6–4.0 mm for 4.5 / 3.2 mm SWG. Materials: 304/304L, 316/316L, 321, 317L, 347, 2205, Monel 400, Titanium, Inconel 600/625/X750, Incoloy 800/825, Hastelloy B2/C276, Alloy 20, Nickel 200. Supplied on spools. EN 10204 3.1 certificate. Factory-direct price, 7–15 day lead time.
V-Shape Stainless Steel Metallic Strip Tape for Spiral Wound Gasket — Flat / V / W Profile in 304, 316L, 321, Monel, Inconel & More
V-Shape Stainless Steel Metallic Strip Tape — the winding element for spiral wound gaskets, supplied in Flat, V and W profiles on spools.
V-Shape Stainless Steel Metallic Strip Tape is the metallic winding element used to manufacture spiral wound gaskets (SWG). It is produced by precision cold-rolling stainless steel or specialty alloy strip and then forming it into a V-shape, W-shape or flat profile. When wound alternately with a soft non-metallic filler such as flexible graphite, PTFE or mica, it forms the high-pressure sealing element of an SWG. The same tape is also used for double-jacketed gasket bodies and gasket eyelets.
- Profiles: Flat, V-shape, W-shape
- Thickness: 0.15 mm – 0.20 mm (V tape: 4.8–5.3 mm / 3.6–4.0 mm for 4.5 / 3.2 mm SWG)
- Width: 2.5 mm – 100 mm; slit to your requirement
- Materials: 304 / 304L, 316 / 316L, 321, 317L, 347, 31803 (2205), Monel 400, Titanium, Inconel 600 / 625 / X750, Incoloy 800 / 825, Hastelloy B2 / C276, Alloy 20, Nickel 200, Carbon steel
- Supply form: on spools, ready for SWG winding machines
- Documentation: EN 10204 3.1 material certificate and dimensional inspection report with each batch
What Is V-Shape Metallic Strip Tape?

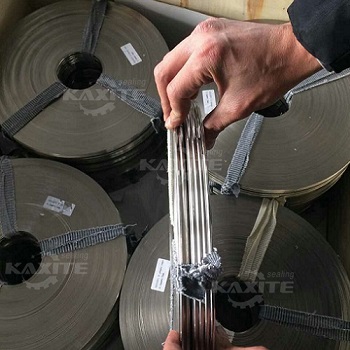

V-Shape Stainless Steel Metallic Strip Tape is the primary winding element of a spiral wound gasket. It is made from cold-rolled stainless steel or specialty alloy strip, precision-formed into a V or W profile, and supplied on spools for use in SWG winding machines. During gasket manufacture, the metallic tape is wound alternately with a soft non-metallic filler — usually flexible expanded graphite, PTFE or mica — and the ends are secured by spot welding.
The metallic tape provides the mechanical strength and elastic recovery of the gasket, while the filler provides the sealing. The V profile allows the gasket to deform under bolt load and recover as the load changes, which is why SWG is the standard choice for high-pressure, high-temperature and thermal-cycling flange joints. Flat metallic tape is also used for double-jacketed gasket bodies and for forming the eyelets (edge rings) of gaskets, so Kaxite supplies all three profiles — Flat, V and W — from the same production line.
Available Size & Profile
| Item | Specification | Application |
|---|---|---|
| Thickness | 0.15 mm – 0.20 mm | Standard SWG winding |
| Width | 2.5 mm – 100 mm | SWG winding, double-jacketed body, eyelets |
| V tape height | 4.8–5.3 mm / 3.6–4.0 mm | Corresponds to 4.5 mm / 3.2 mm SWG cross-section |
| Profile | Flat / V / W | V and W for SWG winding; Flat for double-jacketed gaskets and eyelets |
| Supply form | Spool | Ready for SWG winding machines |
Custom widths and profile dimensions available on request. Minimum order quantity applies to specialty alloy grades.
Materials for Spiral Wound Gasket
| Material | Acronym | Hardness (HB) | Temperature (°C) |
|---|---|---|---|
| Carbon steel | CS | 120 | −40 to +540 |
| 304 SS | 304 | 130–180 | −195 to +760 |
| 304L SS | 304L | 130–180 | −195 to +760 |
| 316L SS | 316L | 130–180 | −100 to +760 |
| 321 SS | 321 | 130–190 | −195 to +760 |
| 317L SS | 317L | — | −100 to +760 |
| 347 SS | 347 | — | −185 to +760 |
| Duplex 2205 | 31803 | — | Per application |
| Monel 400 | MON | 150 | −130 to +82 |
| Nickel 200 | NI | — | −195 to +760 |
| Titanium | TI | 215 | −195 to +1090 |
| Incoloy 800 | IN 800 | — | −100 to +870 |
| Incoloy 825 | IN 825 | — | −100 to +870 |
| Inconel 600 | INC 600 | 150 | −100 to +1090 |
| Inconel 625 | INC 625 | — | −100 to +1090 |
| Inconel X750 | INX | — | −100 to +1090 |
| Hastelloy B2 | HAST B | 215 | −185 to +1090 |
| Hastelloy C276 | HAST C | — | −185 to +1090 |
| Alloy 20 | A-20 | — | −185 to +1090 |
Temperatures are for reference only. Confirm the exact grade and hardness against your flange specification and process medium.
Typical Applications
- Winding element for spiral wound gaskets (SWG) in refinery, petrochemical and power plant service
- Body and eyelets of double-jacketed gaskets
- High-pressure, high-temperature and thermal-cycling flange joints
- Sour gas (H2S), seawater and other corrosive service when paired with the correct alloy grade
- Cryogenic and high-temperature service where standard sheet gaskets are unsuitable
- Replacement tape stock for SWG winding machines
Why Buy V-Shape Metallic Strip Tape from Kaxite Sealing
We roll, form and slit the tape in-house
Ningbo Kaxite Sealing Materials Co., Ltd. operates its own cold-rolling, V-forming and slitting lines in Ningbo, China. We control strip thickness, V-profile geometry, surface finish and spool tension — so the tape you receive is consistent from spool to spool and ready for your SWG winding machine.
Quality control on every batch
- Incoming steel and alloy strip verified by spectrometer analysis
- Strip thickness and width measured on 100% of production
- V-profile height and angle checked against SWG cross-section
- Surface finish inspected for scratches, burrs and oxidation
- EN 10204 3.1 material certificate issued with each shipment
- Third-party inspection (SGS, BV, TUV) arranged on request
Full range of profiles and materials
- Flat, V and W profiles from the same production line
- Standard widths 2.5 mm to 100 mm; custom slit to your requirement
- Stainless steel, duplex, nickel alloys, titanium and carbon steel
- Spool weights and dimensions to suit your winding equipment
Terms that suit project procurement
- No minimum order quantity on standard sizes — sample and trial orders welcome
- Stock sizes ship in 7–15 days; specialty alloys in 15–25 days
- Export packing with protective wrap and plywood case or pallet
- 24 hours × 7 days after-sales response
What to Send for an Accurate Quotation
| Information | Example | Why We Need It |
|---|---|---|
| Profile | V-shape, 4.5 mm SWG | Determines forming setup and V height |
| Material / grade | SS316L | Confirms strip stock and hardness |
| Width | 4.5 mm or 6.4 mm | Slitting setup and SWG size |
| Thickness | 0.18 mm | Rolling setup and price |
| Spool requirement | 5 kg per spool | Packing and machine compatibility |
| Quantity | 500 kg | Sets production scheduling and pricing tier |
Get Your V-Shape Metallic Strip Tape Quotation
Send your required profile, material grade, width, thickness and quantity. Our technical sales team will reply within 2 business hours with a factory price and available stock sizes.
Frequently Asked Questions
What is the difference between Flat, V and W metallic strip tape?
V and W profiles are used as the winding element inside a spiral wound gasket. The V (or W) cross-section lets the gasket compress and recover under bolt load, which is essential for thermal-cycling joints. Flat tape is not used for SWG winding; it is used for the body of double-jacketed gaskets and for forming gasket eyelets (edge rings). All three profiles are produced from the same strip stock.
Which material grade should I choose?
Carbon steel is the economy choice for non-corrosive, moderate-temperature service. SS304 / 304L covers general refinery and petrochemical duties. SS316 / 316L adds molybdenum for improved chloride and corrosion resistance. SS321 and SS347 are stabilised grades for high-temperature service. Duplex 2205 is for seawater and chloride-rich service. Monel 400, Inconel 600 / 625 / X750, Incoloy 800 / 825, Hastelloy B2 / C276 and Titanium are for sour gas, strong acids and other extreme corrosion duties. Confirm the grade against your flange specification and process medium.
What is the standard V tape height for 4.5 mm and 3.2 mm SWG?
For a 4.5 mm spiral wound gasket cross-section, the V tape height is typically 4.8–5.3 mm. For a 3.2 mm cross-section, the V tape height is typically 3.6–4.0 mm. The finished gasket thickness depends on the filler and the winding tension, so we recommend confirming the exact V height against your SWG drawing before ordering.
Can you supply the tape on spools for our winding machine?
Yes. All V and W tape is supplied on spools. Tell us the spool weight and inner diameter your machine uses, and we will pack to suit. Standard spool sizes are available; custom spool sizes on request for larger orders.
What are your MOQ, lead time and payment terms?
There is no minimum order quantity on standard sizes — sample and trial orders are welcome. Stock sizes in stainless steel ship in 7–15 days; specialty alloys such as Monel, Inconel, Hastelloy and Titanium take 15–25 days. Standard payment terms are 30% T/T deposit with the balance against copy of B/L, or L/C at sight for larger orders.
Do you supply material certificates?
Yes. Every batch is supplied with an EN 10204 3.1 material certificate and a dimensional inspection report covering thickness, width, V height and spool weight. Third-party inspection by SGS, BV or TUV can be arranged on request.
