White PTFE Packing with Aramid Corners
Model:KXT P306
White PTFE Packing with Aramid Corners, a multi-yarn braided packing with aramid fiber corners impregnated with PTFE and pure PTFE yarn friction faces. Pressure rating rotary pump 40 bar, reciprocating pump 150 bar, static sealing 250 bar. Rotary speed 22 m/s, density 1.4 g/cm³, temperature −100 °C to +280 °C, pH 2–12. Optional silicone oil treatment. Cross-sections 3–25 mm square. Used for abrasive sand, slurry, chemical, water, steam, solvent and oil service. Material certificate supplied. Factory-direct price, 7–15 day lead time.
White PTFE Packing with Aramid Corners — Multi-Yarn Braided Packing for Abrasive Slurry, Chemical, Water & Steam Service

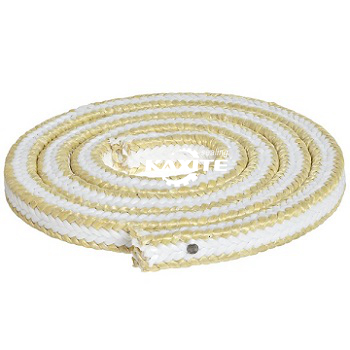

White PTFE Packing with Aramid Corners — aramid yarn corners for strength and abrasion resistance, PTFE yarn friction faces for low friction and chemical resistance.
White PTFE Packing with Aramid Corners is a multi-yarn braided packing engineered to combine the strength of aramid fiber with the chemical resistance and low friction of pure PTFE. The corners of the packing are made from aramid fiber yarns impregnated with PTFE, while the friction faces are made of pure PTFE yarns. This structure enhances the lubrication of the aramid fiber and improves the mechanical strength of the PTFE, making the packing extremely durable and abrasion resistant in difficult sealing applications — including abrasive sand, slurry and other gritty media, as well as water, steam, solvents and most chemicals. It can be additionally lubricated with silicone oil on request.
- Construction: multi-yarn braided — aramid fiber yarn corners impregnated with PTFE, friction faces of pure PTFE yarns
- Optional lubrication: silicone oil treatment available
- Pressure rating: rotary pump 40 bar; reciprocating pump 150 bar; static sealing 250 bar
- Rotary speed: up to 22 m/s
- Density: 1.4 g/cm³
- Temperature range: −100 °C to +280 °C
- pH range: 2–12
- Cross-sections: 3 mm × 3 mm to 25 mm × 25 mm; custom sizes on request
- Documentation: material certificate and dimensional inspection report with each batch
What Is White PTFE Packing with Aramid Corners?
White PTFE Packing with Aramid Corners is a multi-yarn braided packing in which two different fiber yarns are combined in one braid. The corners of the packing are made from aramid fiber yarns impregnated with PTFE. The friction faces — the surfaces that contact the shaft or stem — are made from pure PTFE yarns. This hybrid construction is the key to the packing's performance: the aramid corners provide high tensile strength and extrusion resistance, while the PTFE faces provide low friction, chemical inertness and a smooth sealing surface against the shaft.
Because aramid fiber alone has limited lubrication and PTFE alone has limited mechanical strength, combining them in a single braid allows the packing to handle duties that would defeat either material on its own. The packing is extremely durable and abrasion resistant, making it well suited for difficult sealing applications such as abrasive sand, slurry and other gritty media. It is also compatible with most chemicals, water, steam, solvents and oils, so it is widely used as a general-purpose packing for pumps and valves in chemical plants, refineries, pulp and paper mills, and other process industries. The packing can be additionally lubricated with silicone oil when a lower break-in friction is required.
Technical Specification
| Parameter | Value |
|---|---|
| Pressure — rotary pump | 40 bar |
| Pressure — reciprocating pump | 150 bar |
| Pressure — static sealing | 250 bar |
| Rotary speed | 22 m/s |
| Density | 1.4 g/cm³ |
| Temperature range | −100 °C to +280 °C |
| pH range | 2–12 |
| Construction | Aramid fiber corners impregnated with PTFE, PTFE yarn friction faces |
| Optional treatment | Silicone oil lubrication |
Values are typical for standard production. Confirm the exact grade and size against your pump or valve specification and process medium.
Key Advantages
- Extremely durable and abrasion resistant — suitable for the most demanding pump and valve duties
- Well suited for difficult sealing applications, including abrasive media
- High tensile strength and extrusion resistance from the aramid fiber corners
- Low friction, chemical inertness and smooth sealing surface from the PTFE yarn faces
- Compatible with most chemicals, water, steam, solvents and oils
- Optional silicone oil treatment reduces break-in friction
- High rotary speed capability — up to 22 m/s
- Wide temperature range — from −100 °C to +280 °C
Typical Applications
- Chemical industry pumps and valves
- Abrasive sand, slurry and other gritty media
- Water and steam service
- Solvents and most chemicals
- Oil and oil-bearing media
- Pulp and paper mill pumps
- Refinery and petrochemical process equipment
- General-purpose high-speed rotating equipment where abrasion resistance is required
Why Buy White PTFE Packing with Aramid Corners from Kaxite Sealing
We braid the packing in-house
Ningbo Kaxite Sealing Materials Co., Ltd. operates its own braiding and impregnation lines in Ningbo, China. We control the aramid yarn grade, PTFE impregnation weight, PTFE face yarn quality, braid density and optional silicone oil treatment — so the packing you receive is consistent from batch to batch and ready to cut and install.
Quality control on every batch
- Incoming aramid fiber and PTFE yarn verified for grade and purity
- Braid density and cross-section measured on 100% of production
- PTFE impregnation weight recorded for each batch
- Friction face condition and lubrication level checked before packing
- Material certificate and dimensional report supplied with each shipment
- Third-party inspection (SGS, BV, TUV) arranged on request
Custom sizes and options
- Square cross-section 3 mm × 3 mm to 25 mm × 25 mm; custom sizes on request
- With or without silicone oil lubrication
- Related grades in the same family — Graphite PTFE Packing with Aramid Fiber Corners, Aramid Fiber Packing, Nomex Fiber Packing — available from the same production line
- Die-formed rings and pre-cut lengths available on request
Terms that suit project procurement
- No minimum order quantity on standard sizes — sample and trial orders welcome
- Stock sizes ship in 7–15 days; custom braiding in 15–25 days
- Export packing with protective wrap and carton or pallet
- 24 hours × 7 days after-sales response
What to Send for an Accurate Quotation
| Information | Example | Why We Need It |
|---|---|---|
| Cross-section | 10 mm × 10 mm | Determines braid setup and density |
| Length or quantity | 10 kg, or 5 m coil | Packing and pricing tier |
| Silicone oil treatment | Yes / No | Confirms break-in friction requirement |
| Application | Slurry pump, chemical valve, water pump | Confirms fiber and lubrication selection |
| Media and temperature | Slurry, water, solvents, 120 °C | Confirms material compatibility |
| Shaft speed and pressure | 15 m/s, 30 bar | Confirms rating is within specification |
Get Your White PTFE Packing with Aramid Corners Quotation
Send your required cross-section, quantity and application details. Our technical sales team will reply within 2 business hours with a factory price and available stock sizes.
Frequently Asked Questions
What is the construction of White PTFE Packing with Aramid Corners?
It is a multi-yarn braided packing. The corners of the packing are made from aramid fiber yarns impregnated with PTFE, and the friction faces (the surfaces contacting the shaft or stem) are made from pure PTFE yarns. This hybrid construction combines the strength and abrasion resistance of aramid fiber with the low friction and chemical inertness of PTFE.
What pressure and temperature can this packing handle?
The packing handles up to 40 bar in rotary pumps, up to 150 bar in reciprocating pumps, and up to 250 bar in static sealing applications. Rotary speed is up to 22 m/s. The temperature range is −100 °C to +280 °C, and the pH range is 2–12. Density is 1.4 g/cm³. Confirm the exact rating against your pump or valve specification and process medium.
What is the difference between this packing and plain Aramid Fiber Packing?
Plain Aramid Fiber Packing is braided entirely from aramid fiber yarns. White PTFE Packing with Aramid Corners uses aramid fiber only at the corners, with pure PTFE yarns on the friction faces. The hybrid construction provides lower friction against the shaft and better chemical resistance than plain aramid packing, while retaining the strength and extrusion resistance that aramid provides. It is particularly well suited to abrasive media where shaft wear must be controlled.
Can you supply custom cross-sections and die-formed rings?
Yes. Standard square cross-sections range from 3 mm × 3 mm to 25 mm × 25 mm, with custom sizes available on request. We also supply die-formed rings and pre-cut lengths to your drawing. Send your size, quantity and application details and we will confirm tooling and lead time.
What are your MOQ, lead time and payment terms?
There is no minimum order quantity on standard sizes — sample and trial orders are welcome. Stock sizes ship in 7–15 days; custom braiding takes 15–25 days. Standard payment terms are 30% T/T deposit with the balance against copy of B/L, or L/C at sight for larger orders.
Do you supply material certificates?
Yes. Every batch is supplied with a material certificate covering fiber grade, braid density, PTFE impregnation weight, temperature range and pH range, plus a dimensional inspection report. Third-party inspection can be arranged on request.
