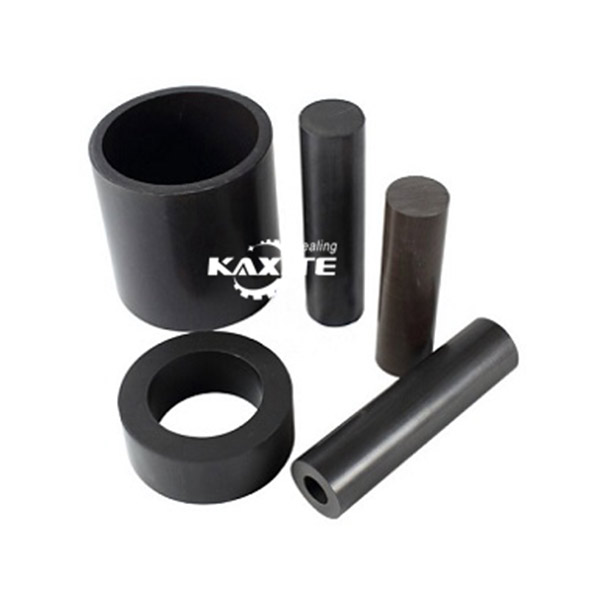

25% Carbon Fiber Filled PTFE Tube

25% Carbon Fiber Filled PTFE Tube

Product number:Style KXT CU980-25

Quick Overview: PTFE Carbon Filled has good chemical resistance to corrosive environments, has better creep and wear resistance compared to standard PTFE materials. These properties are improved with the addition of a carbon filler. This filler improves dimensional stability, raises the heat deflection temperature, improves creep resistance and the dynamic bearing performance. PTFE Carbon Filled exhibits good initial wear and rubbing/sliding contact characteristics in both dry and wet/water applications. It is frequently used in piston rings to reduce cylinder wall wear by entrapping abrasive foreign particles in their relatively soft surface

Send Inquiry

PDF DownLoad

Product Description

We are professional supplier and manufacturer of 25% carbon fiber filled PTFE tube, any need pls contract us kaxite with 25% carbon fiber filled PTFE tube



25% Carbon Fiber Filled PTFE Tube


Style KXT CU980-25 25% carbon fiber filled PTFE Tube

25% carbon fiber filled PTFE tube has good chemical resistance to corrosive environments, has better creep & wear resistance compared to pure PTFE materials. These properties are improved with the addition of a carbon fiber filler. This filler improves dimensional stability, to raise the

heat deflection temperature, improves creep resistance & the dynamic bearing performance. PTFE Carbon Filled exhibits good initial wear and rubbing or sliding contact characteristics in both dry or water applications. It's frequently used in piston rings to reduce cylinder wall wear by

entrapping abrasive outside particles in their relatively soft surface



Advantages:

Carbn fiber enhance the creep and wear resistance to standard PTFE
Extremely good chemical resistance against virtually all media
Moderately electrical conductivity

Good sliding properties

Creep resistance

Anti-static



Application:

Pump and instrument construction

Food and medical technology
Chemical engineering parts

Electrical industry

Pump housings

Shaft bearings

Valve seats

Shaft seals

Gaskets., etc



Data sheet

Specific Gravity

2.05-2.2/cm3

Tensile Strength

12-18 mpa

Elongation

90-200%

Shore D Hardness

60-67

Temperature Range

-200 oC - 260 oC

Material

25% Carbon fiber + PTFE
