NBR Rubber Sheet
Model:KXT B400NBR
NBR Rubber Sheet (Nitrile Rubber Sheet, KXT B400NBR) with outstanding resistance to oils, fuels, solvents, and lubricants. Working temperature -25°C to +120°C, hardness 40°–80° Shore A, tensile strength 13 MPa min. Standard widths 1 m / 1.2 m / 1.5 m, thicknesses 1 mm to 10 mm. Ideal for oil-resistant gasket cutting, hydraulic systems, and industrial maintenance. Custom sizes and die-cut gaskets produced to drawing.
NBR Rubber Sheet Manufacturer & Supplier in China
Kaxite KXT B400NBR Nitrile Rubber Sheet is a high-quality oil-resistant rubber sheet made from Nitrile Butadiene Rubber (NBR). It delivers outstanding resistance to oils, fuels, solvents, lubricants, and general hydrocarbons, with a wide service temperature range of -25°C to +120°C. Ideal for gasket cutting, industrial sealing, and general maintenance applications.
Model
KXT B400NBR
Temperature Range
-25°C to +120°C
Hardness
40° – 80° Shore A
Standard Widths
1 m / 1.2 m / 1.5 m
Kaxite NBR Rubber Sheet (Nitrile Rubber Sheet, KXT B400NBR) is manufactured from high-quality Nitrile Butadiene Rubber, also known as Buna-N, Perbunan, or NBR. Since its development in 1941 as an oil-resistant rubber, NBR has become the industry standard for oil, fuel, and solvent sealing applications. The higher the acrylonitrile content, the better the resistance to oils and fuels — with a corresponding decrease in low-temperature flexibility.
Kaxite NBR Rubber Sheet offers good general resistance to oils, petrols, solvents, and lubricants, combined with good compression set, tear strength, tensile strength, and flexibility. For applications requiring ozone or weather resistance, see our Neoprene Rubber Sheet or Silicone Rubber Sheet.
NBR Rubber Sheet — oil-resistant nitrile rubber sheet for gasket cutting and industrial sealing
Why Buyers Choose NBR Rubber Sheet
Outstanding Oil & Fuel Resistance
NBR resists petroleum-based hydraulic fluids, oils, petrols, and general hydrocarbons — making it the preferred material for oil and fuel sealing applications.
Good Solvent & Lubricant Resistance
Resists most solvents, lubricants, and non-polar chemicals. Not recommended for antioxidant agents and chlorine.
Wide Service Temperature
Continuous service from -25°C to +120°C, suitable for most industrial environments including hot oil and steam-adjacent applications.
Good Compression Set & Tear Strength
Holds up under sustained compression, making it reliable for gasket and sealing applications where deformation resistance matters.
Good Acid & Alkali Resistance
Resists inorganic chemical products, with good general resistance to dilute acids and alkalis. Not for use with antioxidant agents or chlorine.
Strong Tensile Strength & Flexibility
Minimum 13 MPa tensile strength and 250% elongation at break, with good adhesion to metal and excellent recovery for long-term service.
Application vs. Limitation
Recommended For
- Petroleum-based hydraulic fluids and oils
- General hydrocarbon applications
- Most inorganic chemical product industries
- Industrial maintenance and repair
- Gasket cutting and rubber seal strip
- Water and moderate acid / alkali service
Not Recommended For
- Antioxidant agents (oxidation inhibitors)
- Chlorine and chlorine-based compounds
- Ozone-exposed outdoor applications
- Strong polar solvents (ketones, esters)
- Long-term low-temperature below -25°C
- High-temperature above +120°C continuous service
Typical Applications
Technical Properties of NBR Rubber Sheet
The table below summarizes the typical technical properties of Kaxite KXT B400NBR NBR Rubber Sheet. Actual performance depends on the specific grade of acrylonitrile content, operating temperature, and process media.
| Property | Typical Value | Test Method |
| Color | Black (other colors available on request) | — |
| Specific Gravity | 1.3 – 1.5 g/cm³ | ASTM D297 |
| Hardness | 40° – 80° Shore A | ASTM D2240 |
| Tensile Strength | 13 MPa (min) | ASTM D412 |
| Elongation at Break | 250% (min) | ASTM D412 |
| Tear Strength | 35 N/mm | ASTM D624 |
| Low Temperature Resistance | -25°C | ASTM D1329 |
| Service Temperature Range | -25°C to +120°C | ASTM D2000 |
| Standard Widths | 1 m, 1.2 m, or 1.5 m | — |

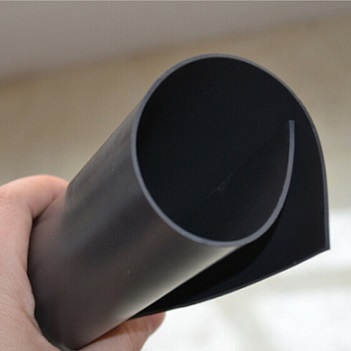

NBR Rubber Sheet — available in rolls and cut-to-size pieces
Buyer note: NBR Rubber Sheet should be stored in a cool, dry environment away from direct sunlight, ozone sources (electric motors, welding equipment), and organic solvents. Shelf life is typically 3–5 years under proper storage conditions. When cutting NBR Rubber Sheet for gaskets, ensure the flange surface is clean and free of oil residue that could affect sealing performance.
Available Sizes, Standards, and Customization
- Standard widths: 1 m, 1.2 m, 1.5 m; custom widths available on request
- Standard thickness: 1 mm, 2 mm, 3 mm, 5 mm, 10 mm; other thicknesses on request
- Available in rolls or cut-to-size sheets
- Custom colors (black, gray, red) available on request
- Cloth or wire reinforced NBR Rubber Sheet available as related product
- Die-cut gaskets and rubber seal strips produced to drawing
Related Rubber Sheets
Depending on the process media, operating temperature, and required sealing performance, the following rubber sheets may also suit your application.
Why Choose Kaxite Sealing
Ningbo Kaxite Sealing Materials Co., Ltd. is a professional sealing materials manufacturer and supplier in China, serving petrochemical, general industrial, and maintenance customers worldwide. Kaxite operates an ISO 9001 certified quality management system across all production processes, with rubber compounding, calendering, and molding capability in-house.
- ISO 9001 certified: Quality management system applied to raw material incoming, production, and final inspection.
- Multiple rubber compounds: NBR, Neoprene, Silicone, Natural Rubber, EPDM, and Viton available in-house.
- Full specification range: Custom thickness, width, color, and Shore A hardness produced to order.
- Cut-to-size service: Die-cut gaskets, seal strips, and pads produced to drawing.
- Fast response: Technical sales team responds within 2 business hours for urgent inquiries.
What to Include in Your Inquiry
To quote accurately and quickly, please provide the following information:
- Product: NBR Rubber Sheet (KXT B400NBR) or specify related rubber type
- Thickness requirement (mm or inch)
- Width requirement (1 m / 1.2 m / 1.5 m / custom)
- Shore A hardness requirement (40° – 80°)
- Color preference (black / gray / red / custom)
- Operating temperature and pressure
- Process media (oil, fuel, solvent, water, chemical, etc.)
- Quantity and delivery target
Need a Factory Quote or Technical Recommendation?
Send us your rubber sheet thickness, width, hardness, and process media. Our sealing engineer will reply within 2 business hours.
Send Inquiry / Request a Quote Download PDF Datasheet Chat on WhatsAppFAQ: NBR Rubber Sheet
What is NBR Rubber Sheet?
NBR Rubber Sheet (Nitrile Rubber Sheet) is a synthetic rubber sheet made from Nitrile Butadiene Rubber, also known as Buna-N or Perbunan. It is widely used for oil-resistant gasket cutting, industrial sealing, and general maintenance because of its outstanding resistance to oils, fuels, and solvents.
What is the temperature range of NBR Rubber Sheet?
The continuous service temperature range of NBR Rubber Sheet is -25°C to +120°C. Low-temperature flexibility decreases as the acrylonitrile content increases, so higher oil-resistance grades should not be used at extreme low temperatures. For higher temperature service, consider Silicone Rubber Sheet.
What is the difference between NBR and Neoprene Rubber Sheet?
NBR offers superior oil, fuel, and solvent resistance, while Neoprene Rubber Sheet offers better ozone, weather, and flame resistance. Choose NBR for oil and hydrocarbon service, and Neoprene for outdoor or ozone-exposed applications.
Is NBR Rubber Sheet suitable for drinking water applications?
NBR Rubber Sheet has good resistance to water and is suitable for many general water applications, but for potable water service we recommend confirming the specific grade and any required certifications (e.g., WRAS, NSF) with our technical team. For food-grade or potable water applications, silicone or EPDM rubber may be preferred.
What sizes and thicknesses are available?
Standard widths are 1 m, 1.2 m, and 1.5 m. Standard thicknesses include 1 mm, 2 mm, 3 mm, 5 mm, and 10 mm, with other thicknesses available on request. Custom widths and die-cut pieces are produced to drawing.
What hardness is NBR Rubber Sheet available in?
NBR Rubber Sheet is available in a Shore A hardness range of 40° to 80°. Higher hardness values provide better compression resistance but less flexibility. The choice depends on the specific application and sealing requirements.
What information is needed for a NBR Rubber Sheet quotation?
Please provide the thickness, width, Shore A hardness requirement, color preference, operating temperature, process media, quantity, and delivery target. A drawing or sample helps us confirm faster for die-cut applications.
